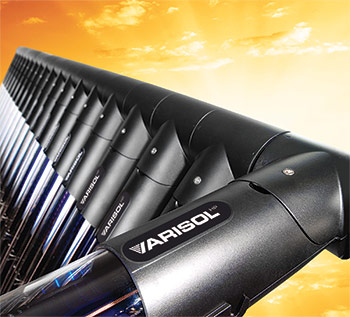

KINGSPAN VARISOL Solar Water Heating

Next Generation Thermomax Heat Pipe Technology.

World leading technology of Thermomax heat pipe tubes and unique modular design combine to offer a high performance collector with a lower cost of ownership than ever before.

The revolutionary new design of Varisol offers a modern and flexible alternative to the rigid manifold system. Quick and easy to install, VarisolHP allows individual tubes to be simply clicked together to create solar collectors of varying sizes.

KINGSPAN Solar Water Heating

Benefits for everyone

Flexibility and high performance are not the only benefits of this unique new design. The combination of high performance polymer materials and 'click-fit' technology creates a product that is easier to order, store and install and is also more environmentally friendly.

Installer
  • Rapid installation.
  • Can size collectors to fit available space e.g. in between windows.

End user
  • Only pay for what you need e.g. 24 tube collector - exactly sized with no surplus energy.
  • Expandable as needs change - can grow the system with your family.

Environment
  • Less use of energy intensive metals with no brazing or welding, reducing energy in manufacturing.
  • Lighter weight and reduced packaging, minimises the impact of transport.

VARISOL Solar Water Heating diagram
  1. A copper pocket is over-moulded into the polymer header to house the condenser and ensure a dry connection of the tubes.
  2. Varisol HP uses the unique temperature limitation device of the HP400 (90°) and the HP450 (135°) for system protection.


Features
Precision sizing - 100% accurate
High performance of Thermomax heat pipe technology
High Performance Polymer material
Manifold component and tube pre-assembled
Box sizes of 1, 5 and 10
Expandable
Suitable for domestic and commercial application
20 year warranty with Kingspan Solar Accredited Installer
Collector size from 1-150 tubes
100% European design and manufacture
5 year warranty against hail damage
Dry connection tubes for ease of installation
and maintenance
Temperature limitation device for system protection


Technical Information
Dimensions (Each Tube) 1955 x 70.9 x 70.9mm
Weight (Each Tube) 2.13kg
Volume (Each Tube) 0.05 litres
Pipe Connections 22mm compression
Max Operating Pressure 6 bar
Min Slope 20 degrees
Max Slope 80 degrees




This product has a

20 year warranty


... double the warranty from other brands.
(warranty only available with a Kingspan Solar Accredited Installer such as Solar Works)


20 Year Warranty
